The AT1 HD-4 Video Production System is a user-friendly device that doesn’t require a computer. It can support up to four HD cameras and comes equipped with a range of professional features. The hardware switcher that the system is built around is the Atem Mini Pro, which has individual keys for recording and streaming, and physical buttons for switching between inputs using professional transitions. Furthermore, the system includes various other features such as Picture in Picture (PiP), a media player, downstream key, upstream key, Chroma and Luma keys.
Livestream to the internet using the AT1 HD by connecting it to the local network or using a 4G SIM card with the included router. (SIM not included)
The audio section of this device features six inputs. There is a stereo audio channel available for each of the four video inputs, as well as two additional stereo audio inputs. Additionally, the audio mixer has six channels and includes a compressor, gate, limiter, and a six-band EQ available per channel.
A Power over Ethernet (PoE) network switch is included to enable power and PTZ (pan-tilt-zoom) control to each camera using a single network cable. This switch can handle up to 4 Standard PoE Cameras for future expansion (maximum 120 watts). Please note that this option is not included with the camcorder option.
This video package allows you to connect your computer for graphics such as PowerPoint, hymns, titles, and lower thirds. You can use the other three inputs for up to three cameras. The package also includes a monitor, PTZ controller (only with PTZ camera option), external drive, labelled wires, and operator training. In case you don’t have a PC for graphics, we can provide you with a unit that has software to generate access to Bibles, hymnals, titles, and presentation slides. If you need a customized package, please feel free to contact us.
This system provides a single output for a Multiview monitor. If you need an independent video output to connect with a projector or another monitor, look for the AT2 systems.
Needs some unique features? We can tailor design this system for you with full integration to what you already have. Contact us

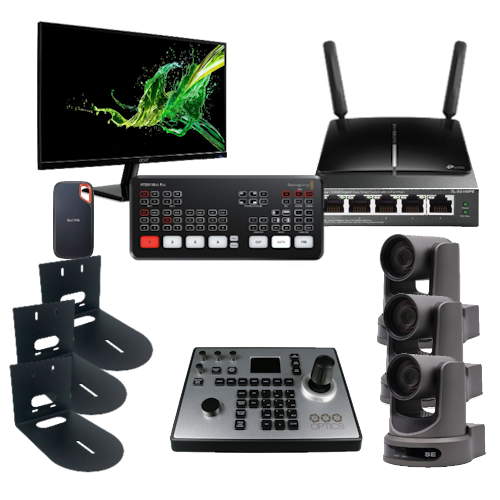

AT1 HD video production system includes :
- 1 Atem mini pro HD. 4 HDMI inputs, 1 HDMI output
- 1 monitor 21.5” 1920 x 1080 monitor
- PTZOptics Move SE 12x or 20x zoom with auto tracking PTZ 1080p60 camera , or Canon Professional 4K 20x XA60 camcorder.
- PTZ controller of your choice (only with PTZ camera option)
- Wall Bracket for each PTZ camera or Fluid head tripod for camcorder
- 15 meters of cables to connect the camera to the switcher
- 1 4 port Poe network Switch (only with PTZ cameras, not included with camcorders)
- 1 Gigabit router with 4G
- 1 External SSD 500 GB
- All fully labelled wires, connection diagrams and operation manual included
- 3 hours of remote training
- Unlimited technical support for 1 year
This system can operate independently without the need for a computer. However, to access additional features, you will need a computer to program the Atem mini switcher. You can use your existing media graphics PC for this purpose.
Do you require extra features such as a monitor for another room, higher zoom for cameras, longer cables, Zoom integration, etc? We can customize the system design according to your specific needs. Please contact us for further assistance.
Warranty details are as follows: PTZ Camera- 5 years, Camcorders and all other components- 1 year
Delivery
The system will be fully set up, labelled and tested prior shipping. It will ship within 2 weeks with tracking and full insurance at no extra cost to you.
